主题
应用消息
消息推送
js
POST /v1/apps/mbox?access_token={access_token}&source_type={source_type}&for_all={for_all}
请求头部:
请求头 | 说明 |
---|---|
Content-Type | application/json |
Url请求参数:
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
access_token | String | Y | 访问令牌 |
direct | Boolean | N | direct = true时,消息直推推送,用于推送少量人员(400人以内);只支持client_ids、usernames的推送;不支持范围scopes推送 direct = false时,消息队列推送,用于推送大范围人员;支持client_ids、usernames, scopes的推送;支持范围scopes推送 默认值: false |
for_all | Boolean | N | 是否全员推送 client_ids、usernames、scopes三者均为空,for_all=true时,才全员推消息; 否则以范围参数为准[client_ids、usernames、scopes] 默认值: false |
请求参数:
字段 | 类型 | 是否必填 | 说明 |
---|---|---|---|
source_type | String | N | 枚举,NATIVE/ISV,默认值为NATIVE,ISV应用时传ISV |
type | String | Y | 消息类型, text/iamge/file/article/template/rich_text |
client_ids | List<String> | N | 消息推送的用户标识 |
scopes | List<String> | N | 发送范围,组织路径,例如/122/234/ |
usernames | List<String> | N | 用户账号列表 |
platforms | List | N | 枚举,ANDROID/IOS/PC,默认值为IOS和ANDROID |
body | Map | Y | 推送消息体 |
body.at_all | boolean | N | 是否AT所有人员 |
body.content | String | N | 发送内容,具体根据消息类型决定 |
body.is_gif | int | N | 是否gif图片,1代表是 |
body.size | int | N | 大小 |
body.width | int | N | 图片宽度 |
body.height | int | N | 图片高度 |
body.media_id | String | N | 发送的媒体ID |
body.path | String | N | 发送的媒体ID |
body.file_status | int | N | 文件状态,0为正常 |
body.name | String | N | 名称 |
body.articles.summary | String | N | 文章摘要 |
body.articles.cover_url | String | N | 封面URL 或 封面媒体Id |
body.articles.cover_enabled | boolean | N | 是否显示封面,true/false |
body.articles.create_time | long | N | 创建时间 |
body.articles.title | String | N | 文章标题 |
body.articles.url | String | N | 图文详情内容,有些获取url内容,为空时,图文详情显示content内容 |
body.template_id | String | N | 模板ID,模板消息必填 |
body.data | Json | N | 模板数据,模板消息必填,value为变量值,color为颜色,font_size为字号大小. 详情见下面模板消息示例 |
body.emphasis_keyword | String | N | 高亮属性,保留字段 |
body.top_color | String | N | 顶部颜色 |
body.top_avatar | String | N | 顶部图标 |
body.top_title | String | N | 顶部标题 |
body.data.text_style | String | N | normal(正常)bold(粗体) |
actions | Json | N | 消息按钮 第一层数据代表的多少行按钮[目前最多5个], 第二层数据代表一行有多少个按钮[目前最多5个] 参考按钮actions |
action_acl | Json | N | 按钮访问控制,参考按钮访问控制action_acl |
请求示例:
js
/v1/apps/mbox?access_token=b646339e2f4f4234af6bae5f72db9879
文本示例:
点击查看文本示例
字段 | 类型 | 必填 | 说明 |
---|---|---|---|
type | String | Y | 消息类型,文本消息值: text |
body | Map | Y | 推送消息体 |
body.content | String | Y | 消息内容 |
json
{
"type": "TEXT",
"body": {
"at_all": false,
"content": "2"
},
"client_ids": [
"c24b6a94cfb14b79af12a1399edc9e31"
],
"usernames": [
"username1"
],
"platforms": [
"ANDROID","IOS","PC"
]
}

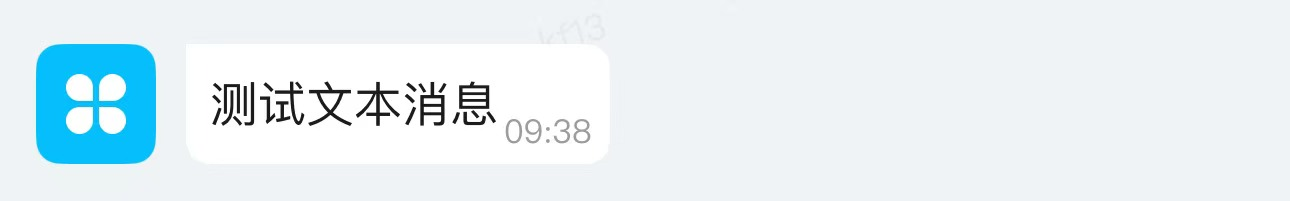

文本消息显示效果:
Curl示例:
curl -i -X POST \
-H "Content-Type:application/json" \
-d \
'{
"type": "text",
"body":
{
"content": "测试文本消息"
},
"usernames":
[
"username1","username2"
]
}' \
'https://替换成你的域名/v1/apps/mbox?access_token={替换成你的access_token}'
图片示例:
点击查看图片示例
字段 | 类型 | 必填 | 说明 |
---|---|---|---|
type | String | Y | 消息类型, 文本消息值: image |
body | Map | Y | 推送消息体 |
body.is_gif | Boolean | N | 是否是gif,默认值: false |
body.media_id | String | Y | 发送的媒体ID |
body.size | Int | N | 图片大小,默认值: 0 |
body.height | Int | N | 图片高度,默认值: 0 |
body.width | Int | N | 图片宽度,默认值: 0 |
json
{
"type": "IMAGE",
"body": {
"is_gif": 0,
"size": 1852,
"width": 280,
"media_id": "Z3JvdXAxL00wMC8wMC80OC9yQkFCR1ZkaFI5Q0FjNmp2QUFBSFBIRkhXSkk1NDEuanBn",
"content": "图片内容,base64编码",
"height": 280
},
"client_ids": [
"c24b6a94cfb14b79af12a1399edc9e31"
],
"usernames": [
"username1"
],
"platforms": [
"ANDROID","IOS","PC"
]
}

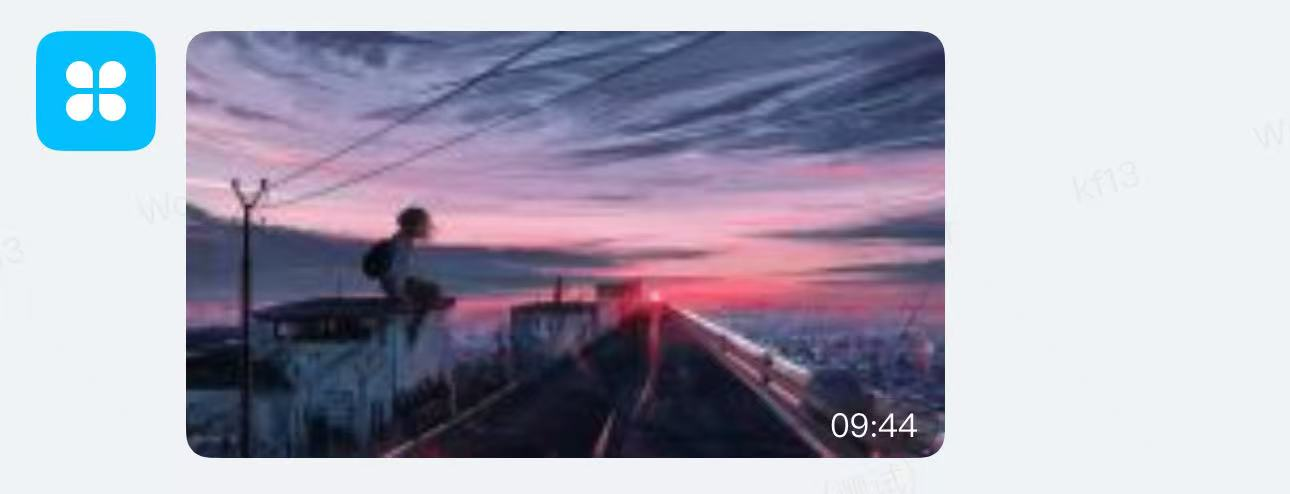

图片消息显示效果:
Curl示例:
curl -i -X POST \
-H "Content-Type:application/json" \
-d \
'{
"type": "IMAGE",
"body": {
"is_gif": 0,
"size": 1852,
"width": 280,
"media_id": "Z3JvdXAxL00wMC8wMC80OC9yQkFCR1ZkaFI5Q0FjNmp2QUFBSFBIRkhXSkk1NDEuanBn",
"content": "图片内容,base64编码",
"height": 280
},
"usernames": [
"username1","username2"
],
"platforms": [
"ANDROID","IOS","PC"
]
}' \
'https://替换成你的域名/v1/apps/mbox?access_token={替换成你的access_token}'
文件示例:
点击查看文件示例
字段 | 类型 | 必填 | 说明 |
---|---|---|---|
type | String | Y | 消息类型,文本消息值: file |
body | Map | Y | 推送消息体 |
body.name | String | N | 文件名 |
body.media_id | String | Y | 发送的媒体ID |
body.size | Int | N | 图片大小,默认值: 0 |
json
{
"type": "FILE",
"body": {
"size": 71416,
"name": "IMG_0778.GIF",
"media_id": "Z3JvdXAxL00wMC8wMC80Ny9yQkFCR1ZkaEdBZUFYRkxmQUFFVy1JYmNRbTgwNjkuZ2lm",
},
"client_ids": [
"c24b6a94cfb14b79af12a1399edc9e31"
],
"platforms": [
"ANDROID","IOS","PC"
]
}
图文示例:
点击查看图文示例
字段 | 类型 | 必填 | 说明 |
---|---|---|---|
type | String | Y | 消息类型, 文本消息值: article |
body | Map | Y | 推送消息体 |
body.articles | StringArray | Y | articles数组为1时:代表单图文articles数组为大于1时:代表多图文 |
body.articles.summary | String | N | 发送的媒体ID |
body.articles.cover_url | String | N | 图文封面URL 或 封面媒体Id |
body.articles.cover_enabled | Boolean | N | 是否显示封面,true/false |
body.articles.title | String | Y | 文章标题 |
body.articles.url | String | Y | 图文详情跳转链接 |
json
{
"type": "article",
"body":
{
"articles":
[
{
"summary": "防汛关键期来临——新技术+“老把式”,提升监测预警能力",
"cover_enabled": false,
"cover_url": "https://inews.gtimg.com/news_bt/OStKexVGk5VtT7QWWMjPT19ZIDIb8RdIL5EoftBx2N7XoAA/641",
"create_time": 1465205632846,
"author": "凯里",
"title": "防汛关键期来临——新技术+“老把式”,提升监测预警能力",
"url": "https://news.qq.com/rain/a/20250716A09MG100"
},
{
"summary": "水利部:今年防汛关键期 黄河、海河等流域可能发生较大洪水",
"cover_enabled": false,
"cover_url": "https://inews.gtimg.com/om_bt/OHBplHUS5Th8LO1zbNqthZdvLoF2h7_-H0YsERdvO0bosAA/0",
"create_time": 1465205632846,
"author": "凯里",
"title": "水利部:今年防汛关键期 黄河、海河等流域可能发生较大洪水",
"url": "https://news.qq.com/rain/a/20250716A06TH500"
}
]
},
"usernames":
[
"524064"
],
"platforms":
[
"ANDROID",
"IOS",
"PC"
]
}
模板消息--根据模板ID:
点击查看模板消息示例
字段 | 类型 | 必填 | 说明 |
---|---|---|---|
type | String | Y | 消息类型 ,文本消息值: image |
body | Map | Y | 推送消息体 |
body.template_id | String | Y | 模板消息ID |
body.top_color | String | N | 顶部颜色 |
body.top_avatar | String | N | 顶部图标 |
body.top_title | String | N | 顶部标题 |
body.data | Json | N | 模板数据,模板消息必填,value为变量值,color为颜色,font_size为字号大小. 详情见下面模板消息示例 |
json
{
"type": "TEMPLATE",
"body": {
"template_id": "152891af-1bec-4a18-8201-a58e08a7afad",
"top_color": "#00ff00",
"top_avatar": "Z3JvdXAxL00wMC8wMC80MC9yQkFCR1ZkWDQ0ZUFRY21LQUFBZXVHZDBHS0U4MTkuanBn",
"top_title": "流程大师",
"data": [
{
"key": "keyword1",
"value": "339208499",
"color": "#00ff00",
"font_size": "12",
"text_style": "normal"
},
{
"key": "keyword2",
"value": "2016年01月05日",
"color": "#00ff00",
"font_size": "12",
"text_style": "normal"
},
{
"key": "keyword3",
"value": "830138013810",
"color": "#00ff00",
"font_size": "12",
"text_style": "normal"
},
{
"key": "keyword4",
"value": "8310380131",
"color": "#00ff00",
"font_size": "12",
"text_style": "bold"
}
],
"emphasis_keyword": "keyword1.DATA"
},
"client_ids": [
"a86e83a26be44eb59806901cc8be5d5c"
],
"platforms": [
"ANDROID"
]
}

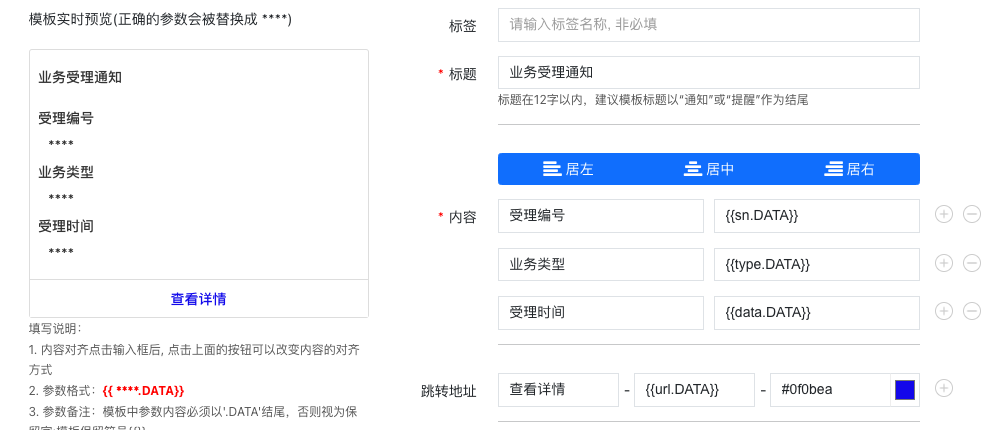

模板消息设置:
模版消息显示效果:
Curl示例:
curl -i -X POST \
-H "Content-Type:application/json" \
-d \
'{
"type": "TEMPLATE",
"body":
{
"template_id": "0196ec87c52376598999e17768c59e17",
"top_color": "#ffff00",
"top_avatar": "01971626be367cb3b57ac2313b07eb43",
"top_title": "流程大师",
"data":
[
{
"key": "sn",
"value": "339208499",
"color": "#00ff00",
"font_size": "14",
"text_style": "normal"
},
{
"key": "type",
"value": "缴存业务",
"color": "#00ff00",
"font_size": "14",
"text_style": "normal"
},
{
"key": "data",
"value": "2016年01月05日",
"color": "#00ff00",
"font_size": "12",
"text_style": "normal"
},
{
"key": "url",
"value": "https://www.baidu.com",
"color": "#00ff00",
"font_size": "12",
"text_style": "bold"
}
]
},
"usernames": [
"username1","username2"
],
"platforms": [
"ANDROID","IOS","PC"
]
}' \
'https://替换成你的域名/v1/apps/mbox?access_token={替换成你的access_token}'
富文本消息示例:
请前往富文本消息页面查看详细说明。
返回数据:
字段 | 类型 | 说明 |
---|---|---|
id | String | 推送计划ID |
app_id | String | 推送应用ID |
plan_time | Long | 推送时间 |
recipients | List<String> | 消息推送的用户标识 |
include_usernames | List<String> | 消息推送的用户名 |
exclude_usernames | List<String> | 消息未推送的用户名(用户不存在或不在使用范围) |
include_client_ids | List<String> | 消息推送的用户标识 |
exclude_client_ids | List<String> | 消息未推送的用户标识(用户不存在或不在使用范围) |
返回示例:
json
{
"status": 0,
"message": "ok",
"result":
{
"recipients":
[
"a673e99a034646dd9ee458fa1c08b87f"
],
"plan_time": 1753493160759,
"include_usernames":
[
"kf13"
],
"id": "0198445643377e99a5c4d95e7044d61a",
"exclude_client_ids":
[],
"app_id": "2777878f6bff481882d221df5b57139dA7Zork2YLw6DoYpn",
"conversation_id": "5afc0ccbffca95eec7c1b128a0492d5bf8cf0e9d7c95ad94c80695c3d40d909de0db8b0fb4a0c8009bfc88a2968c7ff6407861a09b35e329acdabb8000162b06",
"org_id": "b276533349664385b31181fa3455ef8c",
"create_time": 1753493160759,
"domain_id": "workplus",
"include_client_ids":
[],
"plan_id": "0198445643377e99a5c4d95e7044d61a",
"exclude_usernames":
[]
}
}
错误返回值:
status | message | 说明 |
---|---|---|
10011 | token not found. | 访问令牌不存在 |
202012 | 没有对应的雇员 | 没有对应的雇员 |
错误返回值:
status | message | 说明 |
---|---|---|
10011 | token not found. | 访问令牌不存在 |
